| PREVIEW | ITEM NO. | DESC | BORE | SEGMENT DIMENSIOM (TxBxL) (mm) | SEGMENT NUMBER | ||
|
mm |
inch |
mm |
inch | ||||

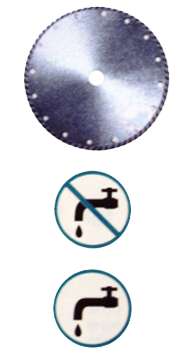

| Segmented saw blade:Use on cutting machine,wall saw,tile saw,hand saw,angle grinder.Use for dry cutting. | |||||||
|
621051601 | 105 | 4" | 16 | 5/8" | 1.8x7.0x35 | 8 |
| 621052001 | 105 | 4" | 20 | 4/5" | 1.8x7.0x35 | 8 | |
| 621052201 | 105 | 4" | 22.23 | 7/8" | 1.8x7.0x35 | 8 | |
| 621101601 | 110 | 4.3" | 16 | 5/8" | 2.0x7.0x33.5 | 8 | |
| 621102001 | 110 | 4.3" | 20 | 4/5" | 2.0x7.0x33.5 | 8 | |
| 621102201 | 110 | 4.3" | 22.23 | 7/8" | 2.0x7.0x33.5 | 8 | |
| 621152001 | 115 | 4.5" | 20 | 4/5" | 2.0x7.0x33.5 | 9 | |
| 621152201 | 115 | 4.5" | 22.23 | 7/8" | 2.0x7.0x33.5 | 9 | |
| 621252001 | 125 | 5" | 20 | 4/5" | 2.0x7.0x37 | 9 | |
| 621252201 | 125 | 5" | 22.23 | 7/8" | 2.0x7.0x37 | 9 | |
| 621502001 | 150 | 6" | 20 | 4/5" | 2.1x7.0x32.5 | 12 | |
| 621502201 | 150 | 6" | 22.23 | 7/8" | 2.1x7.0x32.5 | 12 | |
| 621802201 | 180 | 7" | 22.23 | 7/8" | 2.2x7.0x34.5 | 14 | |
| 621802501 | 180 | 7" | 25.4 | 1" | 2.2x7.0x34.5 | 14 | |
| 621803001 | 180 | 7" | 30 | 1 1/5" | 2.2x7.0x34.5 | 14 | |
| 622302201 | 230 | 9" | 22.23 | 7/8" | 2.4x7.0x39.5 | 16 | |
| 622302501 | 230 | 9" | 25.4 | 1" | 2.4x7.0x39.5 | 16 | |
| 622303001 | 230 | 9' | 30 | 1 1/5" | 2.4x7.0x39.5 | 16 | |
| continuous rim saw blade:Use on cutting machine,wallsaw,tile saw,hand saw,angle grinder.Use for wet | |||||||
|
621051602 | 105 | 4" | 16 | 5/8" | 1.8x7.0 | -- |
| 621052002 | 105 | 4" | 20 | 4/5" | 1.8x7.0 | -- | |
| 621052202 | 105 | 4" | 22.23 | 7/8" | 1.8x7.0 | -- | |
| 621101602 | 110 | 4.3" | 16 | 5/8" | 2.0x7.0x33.5 | -- | |
| 621102002 | 110 | 4.3" | 20 | 4/5" | 2.0x7.0x33.5 | -- | |
| 621102202 | 110 | 4.3" | 22.23 | 7/8" | 2.0x7.0x33.5 | -- | |
| 621152002 | 115 | 4.5" | 20 | 4/5" | 1.9x7.0 | -- | |
| 621152202 | 115 | 4.5" | 22.23 | 7/8" | 1.9x7.0 | -- | |
| 621252002 | 125 | 5" | 20 | 4/5" | 1.9x7.0 | -- | |
| 621252202 | 125 | 5" | 22.23 | 7/8" | 1.9x7.0 | -- | |
| 621502002 | 150 | 6" | 20 | 4/5" | 2.0x5.0 | -- | |
| 621502202 | 150 | 6" | 22.23 | 7/8" | 2.0x5.0 | -- | |
| 621802202 | 180 | 7" | 22.23 | 7/8" | 2.2x7.0 | -- | |
| 621802502 | 180 | 7" | 25.4 | 1" | 2.2x7.0 | -- | |
| 621803002 | 180 | 7" | 30 | 1 1/5" | 2.2x7.0 | -- | |
| 622302202 | 230 | 9" | 22.23 | 7/8" | 2.4x7.0 | -- | |
| 622302502 | 230 | 9" | 25.4 | 1" | 2.4x7.0 | -- | |
| 622303002 | 230 | 9' | 30 | 1 1/5" | 2.4x7.0 | -- | |
|
urbo saw blade:Use on cutting machine,wall saw,tile saw,hand saw,angle grinder.Usa for dry or wet cutting |
|||||||
|
621051603 | 105 | 4" | 16 | 5/8" | 2.2x7.0 | -- |
| 621052003 | 105 | 4" | 20 | 4/5" | 2.2x7.0 | -- | |
| 621052203 | 105 | 4" | 22.23 | 7/8" | 2.2x7.0 | -- | |
| 621101603 | 110 | 4.3" | 16 | 5/8" | 2.0x7.0x33.5 | -- | |
| 621102003 | 110 | 4.3" | 20 | 4/5" | 2.0x7.0x33.5 | -- | |
| 621102203 | 110 | 4.3" | 22.23 | 7/8" | 2.0x7.0x33.5 | -- | |
| 621152003 | 115 | 4.5" | 20 | 4/5" | 2.4x7.0 | -- | |
| 621152203 | 115 | 4.5" | 22.23 | 7/8" | 2.4x7.0 | -- | |
| 621252003 | 125 | 5" | 20 | 4/5" | 2.4x7.0 | -- | |
| 621252203 | 125 | 5" | 22.23 | 7/8" | 2.4x7.0 | -- | |
| 621502003 | 150 | 6" | 20 | 4/5" | 2.4x7.0 | -- | |
| 621502203 | 150 | 6" | 22.23 | 7/8" | 2.4x7.0 | -- | |
| 621802203 | 180 | 7" | 22.23 | 7/8" | 2.6x7.0 | -- | |
| 621802503 | 180 | 7" | 25.4 | 1" | 2.6x7.0 | -- | |
| 621803003 | 180 | 7" | 30 | 1 1/5" | 2.6x7.0 | -- | |
| 622302203 | 230 | 9" | 22.23 | 7/8" | 3.1x7.5 | -- | |
| 622302503 | 230 | 9" | 25.4 | 1" | 3.1x7.5 | -- | |
| 622303003 | 230 | 9' | 30 | 1 1/5" | 3.1x7.5 | -- | |
